Communication lead-acid battery 12V series AGM gel type is a kind of power solution designed for communication equipment and system.AGM, Absorbed Glass Mat, is a special partition material used to replace the traditional lead-acid battery partition, which makes the performance of the battery significantly improved. 12V series AGM gel-type lead-acid batteries are widely used in the communication field with its unique design and excellent performance. In its internal structure, AGM separator plays a key role. Made of high-density glass fibers, it can absorb and retain a large amount of electrolyte, forming a "liquid-poor" design. Compared with traditional liquid-rich batteries, AGM batteries have a relatively small amount of electrolyte, but because of the special design of the separator, the battery is able to maintain a stable distribution of electrolyte during the charging and discharging process, which ensures high performance and a long battery life.

In terms of performance, 12V series AGM gel-type lead-acid batteries have several advantages. Firstly, its float life can reach more than 8 years, which is highly durable. Secondly, the colloidal electrolyte ensures the battery's constant discharge performance, enabling the battery to maintain a stable voltage output during discharge. In addition, AGM batteries also have a unique rapid discharge protection function, which can withstand a large discharge current in a short period of time, providing reliable power protection for communication equipment.

In terms of production technology and process, 12M series AGM colloidal lead-acid batteries also show their advancement. The electrolyte is mixed in the silicon colloid, which makes the battery discharge performance more stable and improves the battery's adaptability to changes in ambient temperature. The application of lead-calcium-tin+rare earth alloy ensures the stability of the pole plates as well as the safe inhibition of gas generation. In addition, the unique design of the safety valve also provides a guarantee for the safety of the battery.

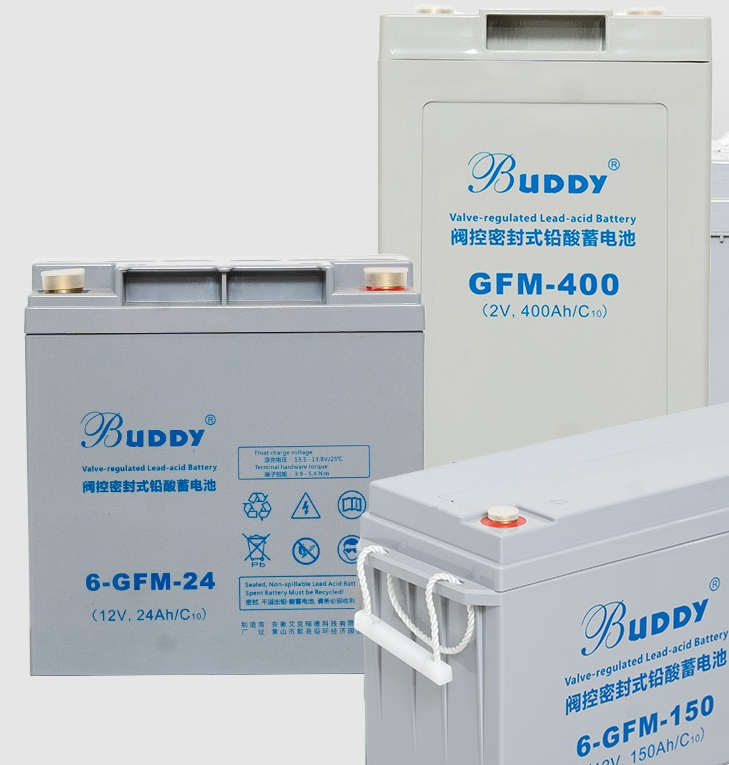

1、6GFM (AGM colloidal type) series specifications and technical parameters

Main technical process characteristics of AGM gel type lead-acid battery

AGM gel type lead-acid battery belongs to sealed lead-acid battery, it is the general adsorption sealed battery internal electrolyte curing, so that its performance is greatly improved compared with the ordinary lead-acid battery.AGM+ gel type lead-acid battery in addition to the characteristics of the general adsorption sealed lead battery, but also has the following advantages:

3.1. Revolutionary design

    ※ The float life of the battery can be more than 8 years.

    ※ Unique rapid discharge protection.

    ※ Colloidal electrolyte ensures uniform discharge performance of the battery.

3.2 Advanced production technology and process

    ※ The electrolyte is mixed in silicon colloid, which makes the discharge performance of the battery more stable, and also improves the width of the battery to changes in ambient temperature, as well as having a lower self-discharge rate.

    ※ Lead-calcium-tin+rare earth alloy ensures the stability of the electrode plate and safely suppresses gas generation.

    ※ The safety valve has a unique design for safety and better quality control and assurance.

3.3 High Reliability

The sealed design ensures that the gas generation rate of the battery is minimized.

Flame retardant design is selected.

    ※ According to IATA regulations, there is no restriction on air, rail and road transportation.

3.4 The electrolyte is 10-20% more than that of adsorption sealed batteries, and the capacity is superior to that of adsorption sealed batteries;

3.5 Colloidal electrolyte has large heat capacity and strong heat dissipation ability, which can avoid the phenomenon of "thermal runaway". It also has good low-temperature charging and discharging performance, which is wider than the adsorption sealed storage battery, and can be used in -40～60℃ environment;

3.6 Colloidal electrolyte is stable, no hydration phenomenon, uniform distribution, no electrolyte stratification, which can effectively slow down the corrosion of positive plate grid, softening of positive active material and sulfation of negative active material;

3.7 Colloidal electrolyte can ensure that the battery has good charging and discharging efficiency and deep discharging performance, no early capacity decay phenomenon, and a longer service life than general adsorption sealed battery;

3.8 Colloidal electrolyte is gelatinous three-dimensional mesh structure, good sealing performance, no seepage, no acid leakage, it is an ideal environmentally friendly product;

3.9 The electrolyte is mixed in silica colloid, which makes the discharge performance of the battery more stable, and also improves its width to the ambient temperature change, as well as has a lower self-discharge rate than the general adsorption sealed lead-acid batteries, and has a long shelf life.

Product implementation standards

    IEC 60896-21 2004 "Valve-regulated test methods for stationary lead-acid batteries".

    IEC 60896-22 2004 Requirements for Valve Regulated Stationary Lead-Acid Batteries

    GB/T 19638.1-2014 Technical Conditions for Stationary Valve Regulated Lead-acid Battery

    YD/T 799-2010 Valve Regulated Sealed Lead Acid Batteries for Communication Applications

To summarize, with its unique design, excellent performance and advanced production process, the lead-acid battery 12V series AGM gel type for telecommunication has demonstrated its outstanding value in the field of telecommunication. It can not only provide stable power security for communication equipment, but also reduce the user's cost of use and maintenance costs, and is an indispensable power solution for communication equipment and systems.

Applicable range and environmental conditions of storage battery

    · Suitable for telecommunication, electric power and UPS as well as energy storage system.

    · Temperature: -40～+60℃ conditions can be used normally.

    · Humidity: ≤95%.

    · Seismic capacity: horizontal acceleration ≥ 0.3, vertical acceleration ≥ 0.15.

    · Altitude: ≤3000m
